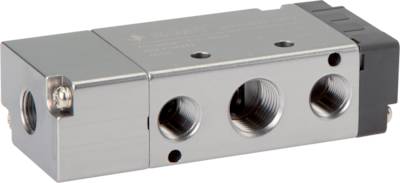

RV 5221-08 A

Technical data

Switching 5/2-way

function spring return

Thread G 1/4" (Pilot and exhaust G 1/8")

flow [l/min] 800

A [mm] 81

B [mm] 35

C [mm] 22

D [mm] 10,5

E [mm] 25

F [mm] 20

G1 G 1/4"

G2 G 1/8"

H1 [mm] 4,3

H2 [mm] 3,3

J [mm] 17

K [mm] 16

L [mm] 38

M [mm] 17

N [mm] 36

O [mm] 24,5

P [mm] 3

S [mm] 21

T [mm] 35

W [mm] 0

Further information on RV5221-08A

Weight 135 g / Pcs

GTIN 4050571715786

Customs duty number 84812090

RoHS compliant Yes

Manufacturer EMC

Description - 5/2-way pneumatic valve, spring return, G 1/4" (Pilot and exhaust G 1/8")

Materials:

Body and slider: aluminium, seals: NBR, pilot: polyamide

Temperature range:

-5°C to +60°C

Operating pressure:

1,5 - 8 bar

Media:

oiled and unoiled filtered compressed air

Service life:

approx. 12 million switching cycles

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
