VG 18
Artikelnummer:

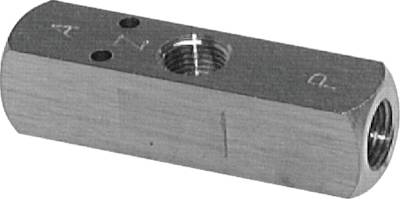

Vakuum ejektor, G 1/8", nickel-plätterad mässing
Vakuum ejektor, G 1/8", nickel-plätterad mässing
Beskrivning
| Dimensions (L x W x H) [mm] | 54 x 14 x 14 |
| Thread Supply air | G 1/8" |
| Thread vacuum | G 1/8" |
| Thread exhaust air | G 1/8" |
| Air consumption* [l/min] | 13 |
| Max. flow [l/min] | 10 |
| Silencer | FFSD 18 |
| Weight | 70 g / pc. |
| Customs duty number: | 84141089 |
Description
Materials:
Housing: nickel-plated brass, nozzle: brass
Temperature range:
-40°C to max. +120°C
Working pressure:
6 bar
Advantages:
•extremely small design, therefore can be fitted directly to consumer item, •very economical, •maintenance free
*at 6 bar
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
